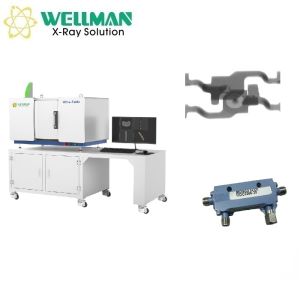

China Fast And Accurate Fully Automatic 3D X Ray Machine For Electronics wholesale
  • China Fast And Accurate Fully Automatic 3D X Ray Machine For Electronics wholesale

Fast And Accurate Fully Automatic 3D X Ray Machine For Electronics
Ask Latest Price
Video Channel
Brand Name :WELLMAN
Model Number :T-160
Certification :CE FDA
Place of Origin :China
MOQ :1
Payment Terms :T/T
X-ray Tube Type :Closed-tube X-ray source
Tube voltage range :0-150 KV
Pixel matrix :1536×1536
Equipment size :1850mmx1300mmx2100mm(Length × width × height)
Pixel size :139 μm
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description
Automated 3D X-Ray Inspection System for PCBA Boards and Semiconductor Products
Inspection Applications
  • Small-sized PCBA boards
  • Internal structure quality of semiconductor packaging
  • SMT solder joint quality assessment:
    • Cold solder joints
    • Wetting issues
    • Solder volume analysis
    • Component offset detection
    • Foreign object identification
    • Bridging detection
    • Pin presence verification
Key Equipment Features
  • Small footprint with high scanning accuracy
  • Simple, intuitive operation
  • Fully automated process: scanning, 3D reconstruction, and image analysis
  • Space-efficient compact design

Ray Source Parameters

Type of ray tube Closed tube X-ray source
Tube voltage range (T-160) 0-150KV

Detector Parameters

Detector type Amorphous silicon flat panel detector
Pixel size (T-160) 139μm
Pixel matrix (T-160) 1536x1536

Equipment Performance Parameters

Maximum sample size (T-160) Diameter 500mm * Height 750mm
Maximum imaging area (T-160) Diameter 250mm * Height 160mm
JIMA card resolution 3μm
Equipment weight (T-160) 1.5T
Equipment dimensions (T-160) 1850mm * 1300mm * 2100mm (L*W*H)
Imaging software system Integrated scanning imaging software, 3D image reconstruction software, 3D image measurement and analysis software, image database management software
