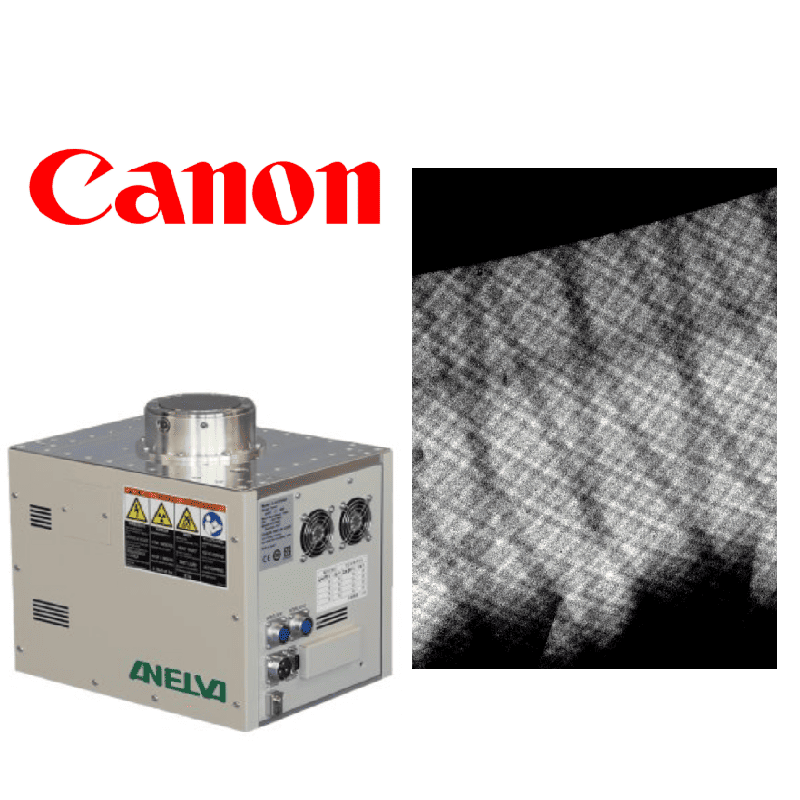

Canon G-310VH-D Microfocus X-ray Source
The G-310VH-D Microfocus X-ray Source is a high-performance industrial imaging solution designed to provide clear and detailed X-ray images. It features a minimum resolution of 4μm, making it ideal for non-destructive inspection applications in industries such as electronics, automotive, and aerospace. This compact and efficient device enhances imaging efficiency and precision, ensuring reliable and accurate results.
Key Features:
-
Achieves a minimum resolution of 4μm for detailed imaging.
-
Compact design with a weight of 21 kg (including inverter) for easy integration and handling.
-
Forced convection cooling method ensures stable operation.
-
Sealed transmission X-ray tube with a diamond window for high efficiency.
-
Continuous operation capability with a maximum power consumption of 53W.
-
Wide operational range for tube voltage (60-100kV) and current (10-200μA).
-
External control via RS-232C (with G-311MH-DP) for versatile integration.
-
Compliance with international safety standards for reliable and safe operation.
Technical Datasheet:
Mechanical Specifications:
-
Dimensions: Refer to drawing (Unit: mm)
-
Weight: 21 kg (including inverter)
-
Installation: 8 x M5, Depth 5, Φ150
Electrical Specifications:
-
Maximum Power Consumption: 53W
-
Input Voltage: DC 24V
-
Tube Voltage Operational Range: 60-100kV
-
Tube Current Operational Range: 10-200μA
-
Maximum Output: 20W
Environmental Specifications:
-
Operational Ambient Temperature: 10°C to 45°C
-
Storage Temperature: 0°C to 50°C
-
Humidity: ≤85% (non-condensing)
X-ray Specifications:
-
X-ray Beam Angle: 168° (maximum), 80° (80%, equidistant)
-
X-ray Window Material/Thickness: C (Diamond) / 0.29mm
-
Target Material: W (Tungsten)
-
X-ray Dose Uniformity: Refer to graph (Page 2)
