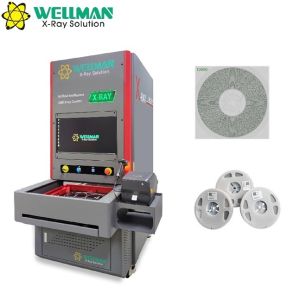

| X-ray Source | |
|---|---|
| Type | Integrated, microfocus |
| Max tube voltage | 80kV |
| Max tube current | 700μA |
| Focal spot size | 30μm |
| Flat Panel Detector | |
| Type | Super definition digital FPD |
| Effective area | 430mm × 430mm |
| Pixel size | 139μm |
| Resolution | 3072 × 3072 |
| parts/Tray Counting | |
| Max size | 17" (430mm) |
| Max thickness | 88mm |
| Min parts size | 01005 |
| Speed | 7-10s |
| Accuracy | 01005 ≥ 99.98%, 0201 & above ≥ 99.99% |
| Equipment | |
| Dimensions | 1000mm (L) × 1300mm (W) × 1820mm (H) |
| Weight | 580kg |
| Power supply | AC110-220V 50/60HZ |
| Max power | 800W |
| Industrial PC | I7 CPU, 16G RAM, 256G SSD+4T HDD |
| Displayer | 24" HDMI LCD |
| Safety Features | |
| Radiation leakage | No leakage, international standard: ≤1μSv/h |
| Back door safety interlock | Automatic X-ray power off when door opens |
| Anti-pinch protection | Safety light curtain covers entire drawer |
| Emergency stop | Front-mounted emergency power off button |
| parts Size | Parts Size | Quantity | Accuracy | Speed |
|---|---|---|---|---|
| 7" (180mm) | 01005 | 40000 | 99.98% | 9-10s |
| 7" (180mm) | 0201 | 20000 | 99.99% | 8-9s |
| 7" (180mm) | 0402 | 10000 | 99.99% | 7-8s |
| 7" (180mm) | 0603 | 5000 | 99.99% | 7-8s |
| 10" (254mm) | 1206 | 5000 | 99.99% | 7-8s |
| 15" (380mm) | 1206 | 10000 | 99.99% | 7-8s |
Artificial intelligence deep learning algorithm
Our counting software uses a powerful artificial intelligence deep learning algorithm. No need to bind components to algorithm, we use AI to automatically identify components and automatically apply algorithm. The algorithm can learn the counted component data, such as:
1. Aspect ratio
2. The angle of each corner of the component;
3. Slope between components from inside to outside;
4. Deformation of component images from the inside to the outside, etc.
As the number of components counting increases, the results become more and more accurate. When we need to count similar components, or larger trays, we can easily handle it.
Every X-ray counter connects to our cloud database for:
The system's counting accuracy approaches 100% over time, with expanding component type coverage. When encountering new components, the system leverages existing database knowledge for immediate high-efficiency processing.
