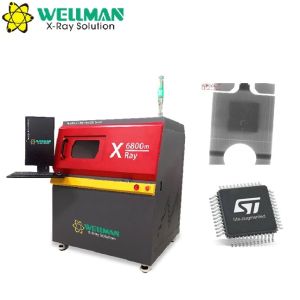

China Industrial PCB X Ray Inspection Equipment 90kV Tube PCB SMT Detection wholesale
  • China Industrial PCB X Ray Inspection Equipment 90kV Tube PCB SMT Detection wholesale

Industrial PCB X Ray Inspection Equipment 90kV Tube PCB SMT Detection
Ask Latest Price
Video Channel
Brand Name :WELLMAN
Model Number :X6800M
Certification :CE, FDA
Place of Origin :CHINA
MOQ :1
Payment Terms :T/T
Packaging Details :Wooden case
Tube Type :Sealed
Operate System :Windows 10
Resolution :1536*1536
Application :PCB inspection
Safety Features :Radiation protection and interlock system
Focus Spot Size :5μm
Voltage :AC 220V
Tilt Detection Angle :60°
Max tube voltage :90kv
Effective area :130mm*130mm
Pixel size :85μm
Max tube current :200μA
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description

WELLMAN Microfocus X-Ray Inspection System X6800M:15KG Load 430*430mm Table + 3.0s/point Fast Inspection + Automated Procedure Editing

High-performance inspection system featuring Japan Hamamatsu X-ray tube (10000+ hours lifetime), 60° tiltable FPD, and 1500X high magnification capability.
Key Advantages
  • Next-gen 5-inch high-definition digital flat panel detector (FPD)
  • 430×430mm worktable with 15kg load-bearing capacity
  • Speed-adjustable 5-axis linkage system keeps image center stable during tilting
  • Programmable inspection processes enable automated batch inspection
  • Intuitive operation with only 2 hours training required
  • Japan Hamamatsu X-ray tube – top-tier sealed design with 10,000+ hour service life (no maintenance needed)
  • 60° tiltable FPD preserves magnification during inspection processes
  • Auto-navigation window – platform shifts to selected coordinates
Hardware Specifications
X-ray Source
Brand Japan Hamamatsu
Type Closed, microfocus
Max tube voltage 90kV
Max tube current 200μA
Focal spot size 5μm
Function Auto preheat
Flat Panel Detector
Effective area 130mm×130mm
Pixel size 85μm
Resolution 1536×1536
Frame rate 20fps
Tiltable angle 60°
Table
Size 430mm×430mm
Detectable area 410mm×410mm
Max load 15kg
Equipment
Magnification Geometry 150X

System 1500X
Inspection speed Max 3.0s/point
Dimensions 1220mm (L) × 1250mm (W) × 1600mm (H)
Weight 1250kg
Power supply AC110-220V 50/60HZ
Max power 1500W
Industrial PC I5 CPU, 4G RAM, 240GB SSD
Displayer 24" HDMI LCD
Safety Features
  • Radiation leakage: No leakage (≤1μSv/h, international standard)
  • Transparent lead glass observation window for safe internal viewing
  • Electromagnetic safety switch locks when X-ray is active
  • Emergency stop button located near operation position
  • Tube protection prevents leaving software without closing X-ray
  • Window and back door safety interlock - X-ray powers off when opened
Software Functions
Basic Operations
  • Full keyboard and mouse control
  • Mouse-click X-ray control with real-time voltage/current display
  • Status bar shows interlock, pre-heat, and X-ray status
  • Adjustable image brightness, contrast and gain
  • Real-time motion axis coordinate display
  • Inspection results display including measurement data
  • Adjustable axis movement speeds (slow/normal/fast)
  • Product list function for saving and recalling inspection parameters
  • Navigation window enabling precise table positioning
Voids Rate Measurement
  • Automatic calculation of voids rate, solder ball area, circumference
  • Manual void addition via polygon or freehand drawing
  • Parameter saving for consistent product inspection
  • Adjustable grayscale threshold, pixel, contrast, and size filtering
Measurement Functions
  • Distance measurement between points
  • Distance rate calculation for through-hole soldering
  • Radius measurement for circular components
  • Perimeter measurement for square components
  • Angle measurement between defined points
Automatic Inspection
  • Manual point setting for customized inspection positions
  • Array mode for regular inspection point patterns
  • Automatic feature recognition for characteristic inspection points
Working Principle
Industrial PCB X Ray Inspection Equipment 90kV Tube PCB SMT Detection
Application Examples
Industrial PCB X Ray Inspection Equipment 90kV Tube PCB SMT Detection
Industrial PCB X Ray Inspection Equipment 90kV Tube PCB SMT Detection
